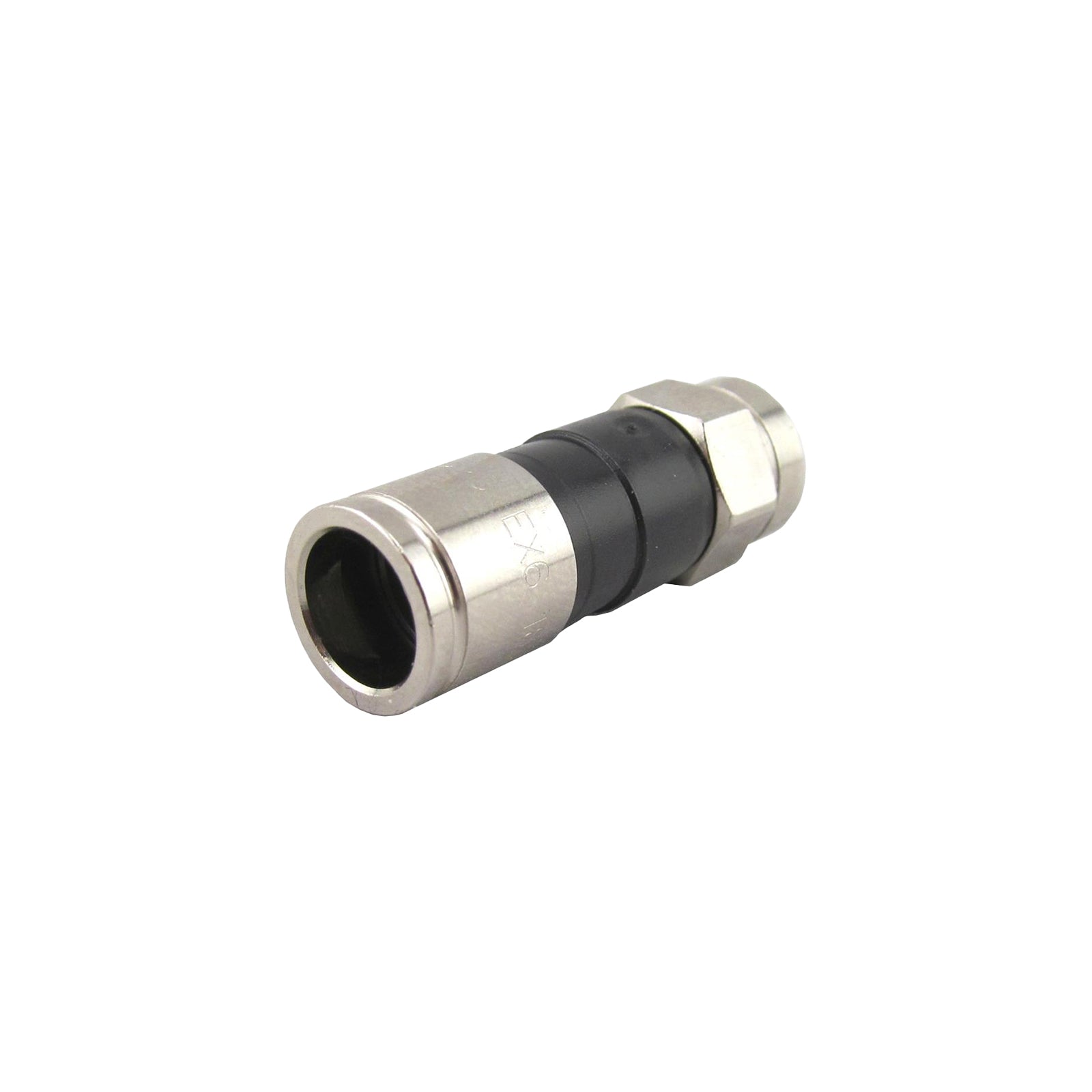

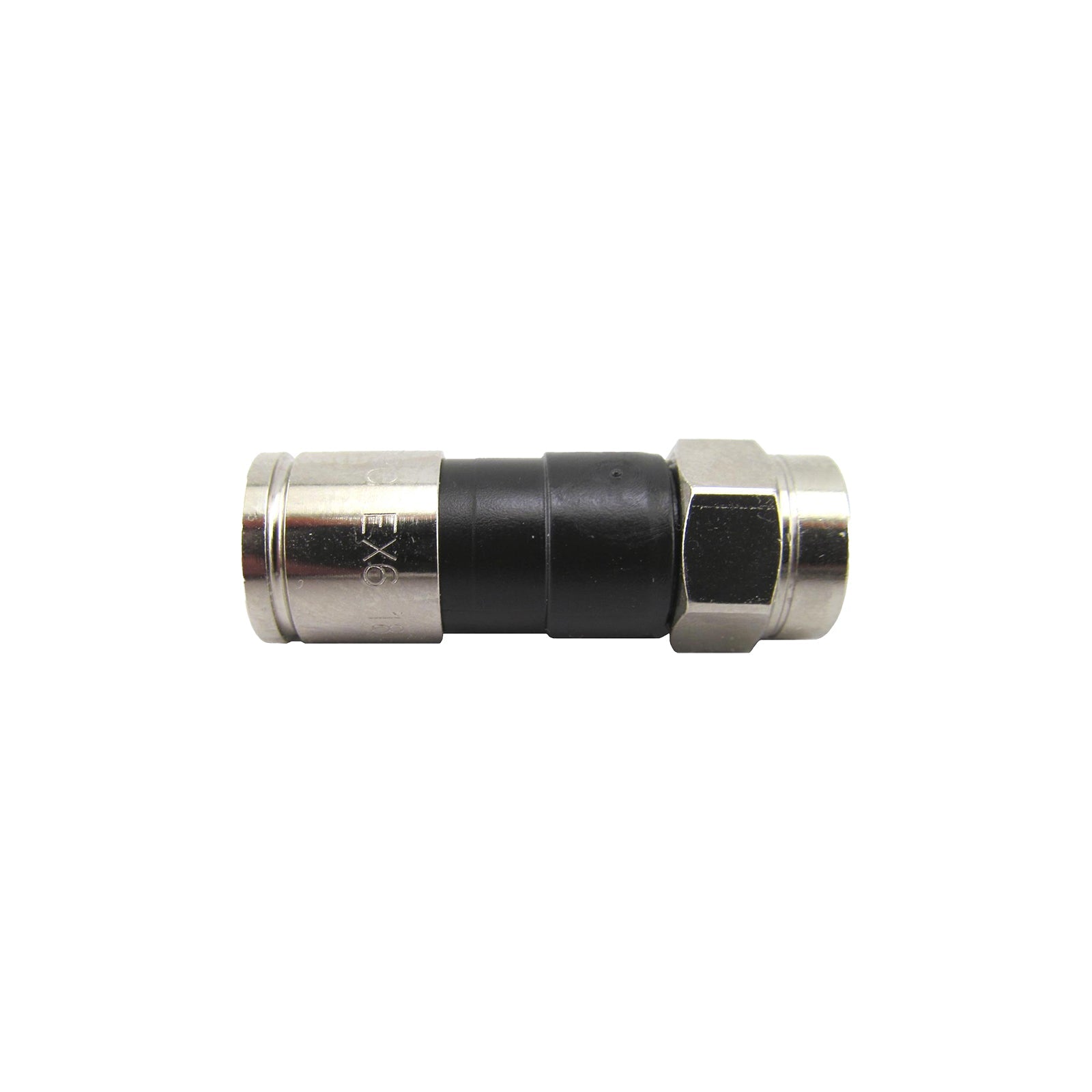

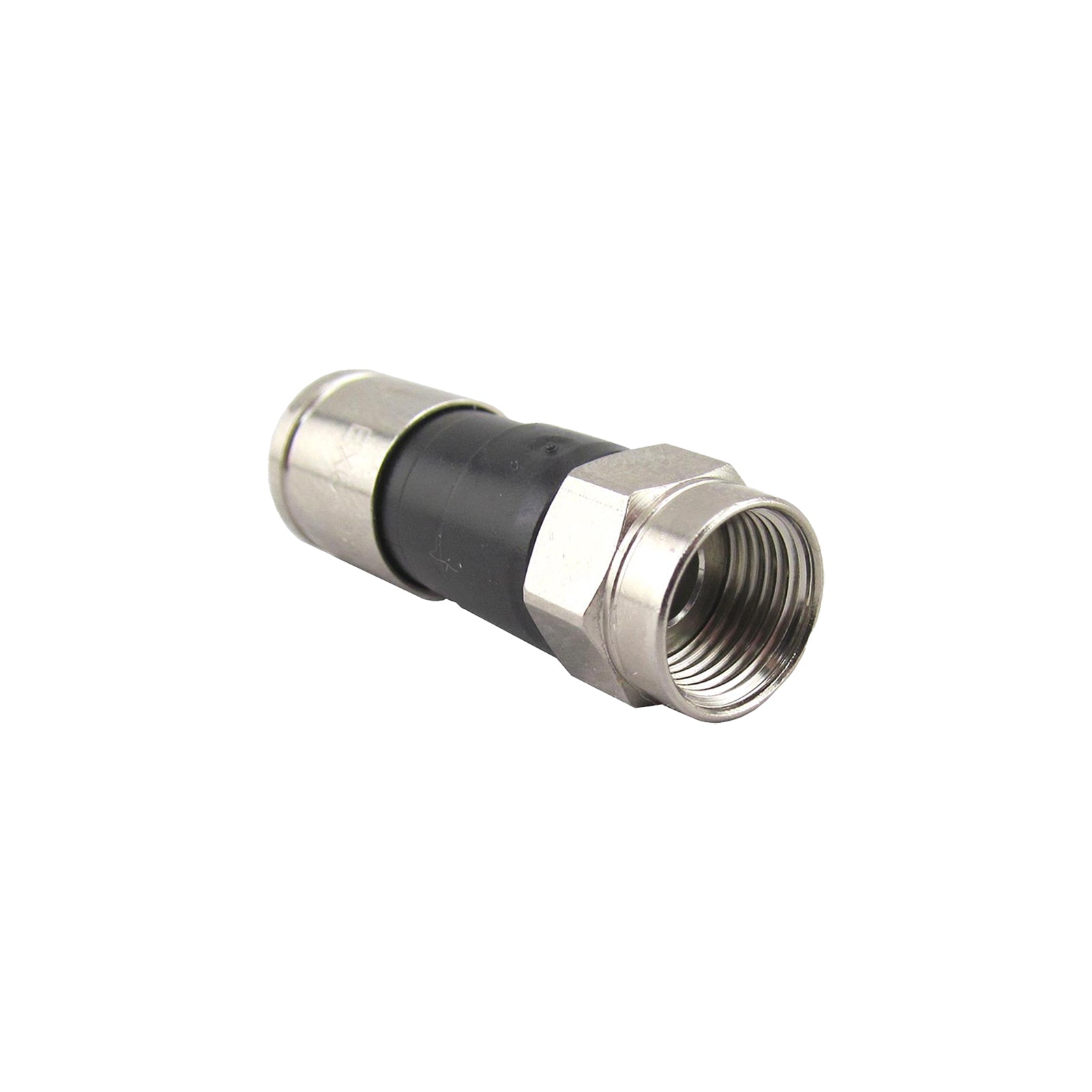

PPC EX6XL RG6 Compression Connectors, 50 fittings
PPC EX6XL RG6 Compression Connectors, 50 fittings

PPC EX6XL RG6 Compression Connectors, 50 fittings

Regular price $14.99 $24.99

Save $-10.00
/
In stock - Ready to ship
sold in last hours
Spent more to get free shipping
Estimated delivery between - .

PPC EX6XL RG6 Compression Connectors, 50 fittings

$24.99

PPC EX6XL RG6 Compression Connectors, 50 fittings

Product Description

Installers are faced with the problem of identifying old unmarked 60% through Quad Shield Series 6 cable, and having to guess on which connector is the best match. This results in unnecessary service calls due to the use of the wrong connector/cable match.

The unique patented design with compliant co-polymer body achieves true universality on 60% through Quad Shield, PE, and PVC jacket.

Features

  • Moisture-tight Patented Design
  • Universal on 60% to Quad cable
  • 1 Piece Construction
  • Physically Contoured Parts for Easy Size Identification

Specifications

  • Bandwidth: 0 MHz to 3 GHz
  • Impedance: 75 Ohms (nominal)
  • Return Loss: Better than –30 dB to 3 GHz
  • Operating Voltage: 90 V (at 60 Hz continuous AC)
  • Operating Temperature: -40°F to +140°F
  • Cable Retention:60% Braid –50 lbs. Minimum, Quad Shield –100 lbs. Minimum
  • Cable Range: 60% -Quad Shield, PE, PVC Jacket

Each
3.50 in. wide x 0.75 in. high x 6 in. deep
Volume: 15.75 cubic in.
Weight: 0.8 lbs.
Quantity: 1 ea.

Case
9.13 in. wide x 6.75 in. high x 9 in. deep
Volume: 554.65 cubic in.
Weight: 16.75 lbs.
Quantity: 20 ea.

Pallet
40.00 in. wide x 39.00 in. high x 48 in. deep
Volume: 74880.00 cubic in.
Weight: 1630 lbs.
Quantity: 2000 ea.
