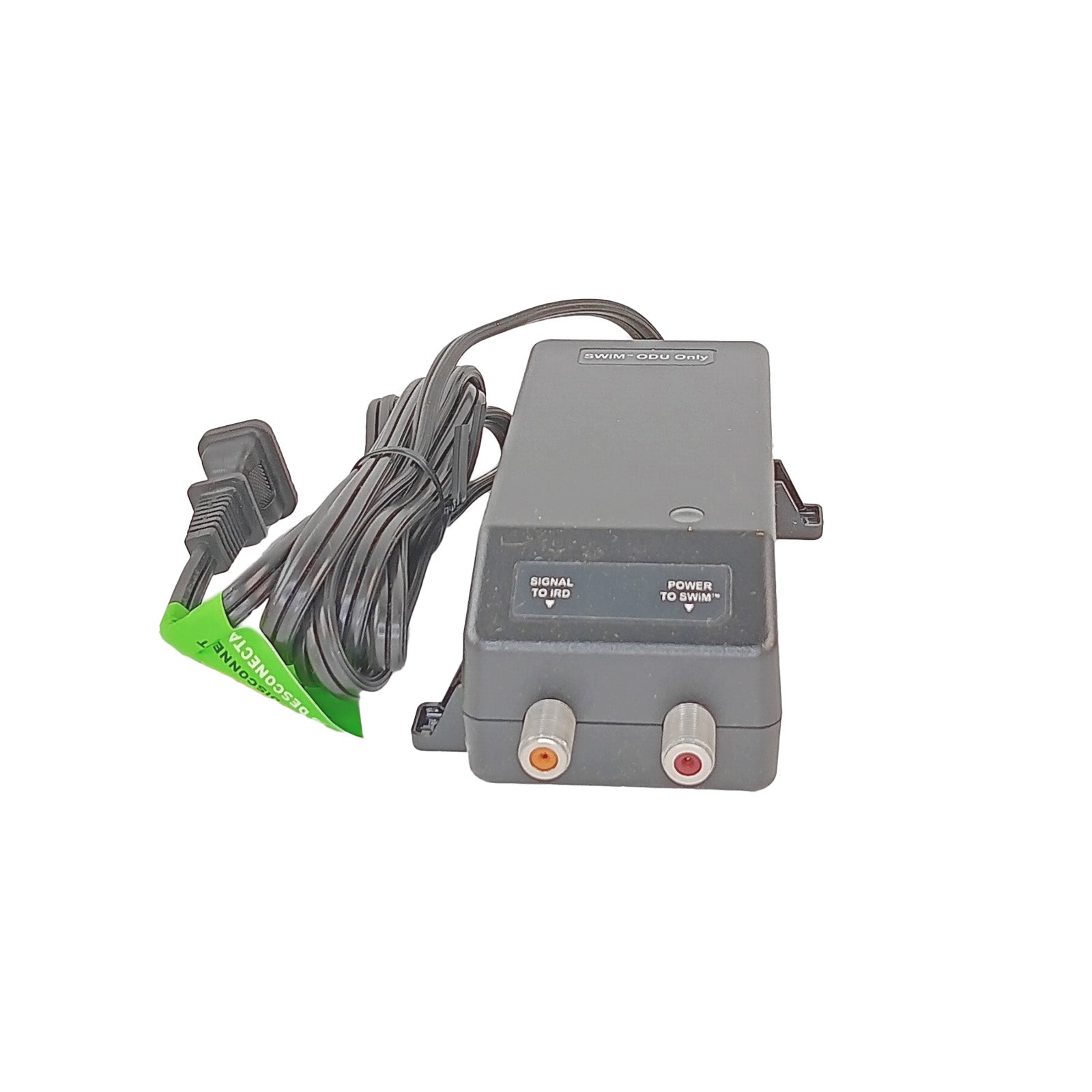

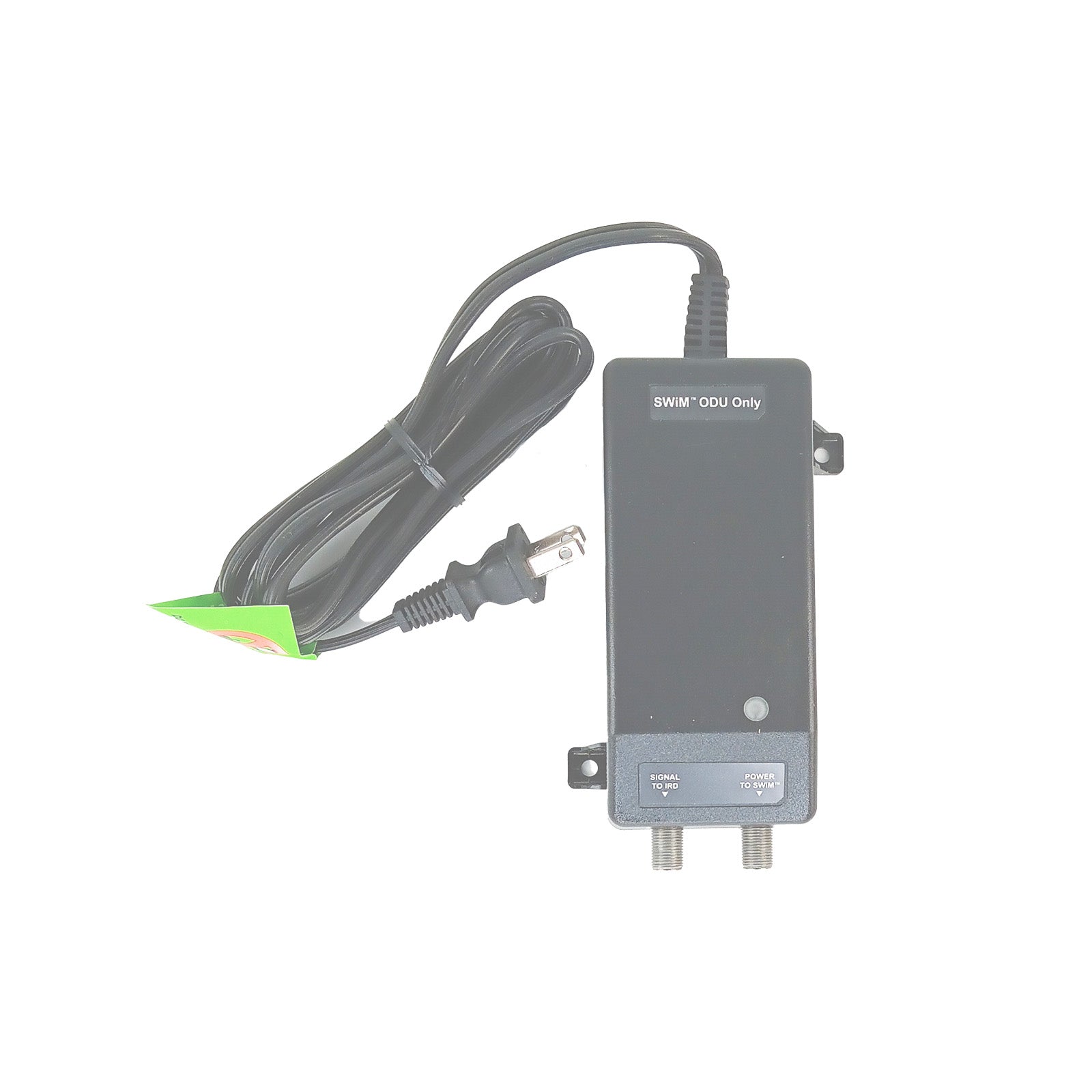

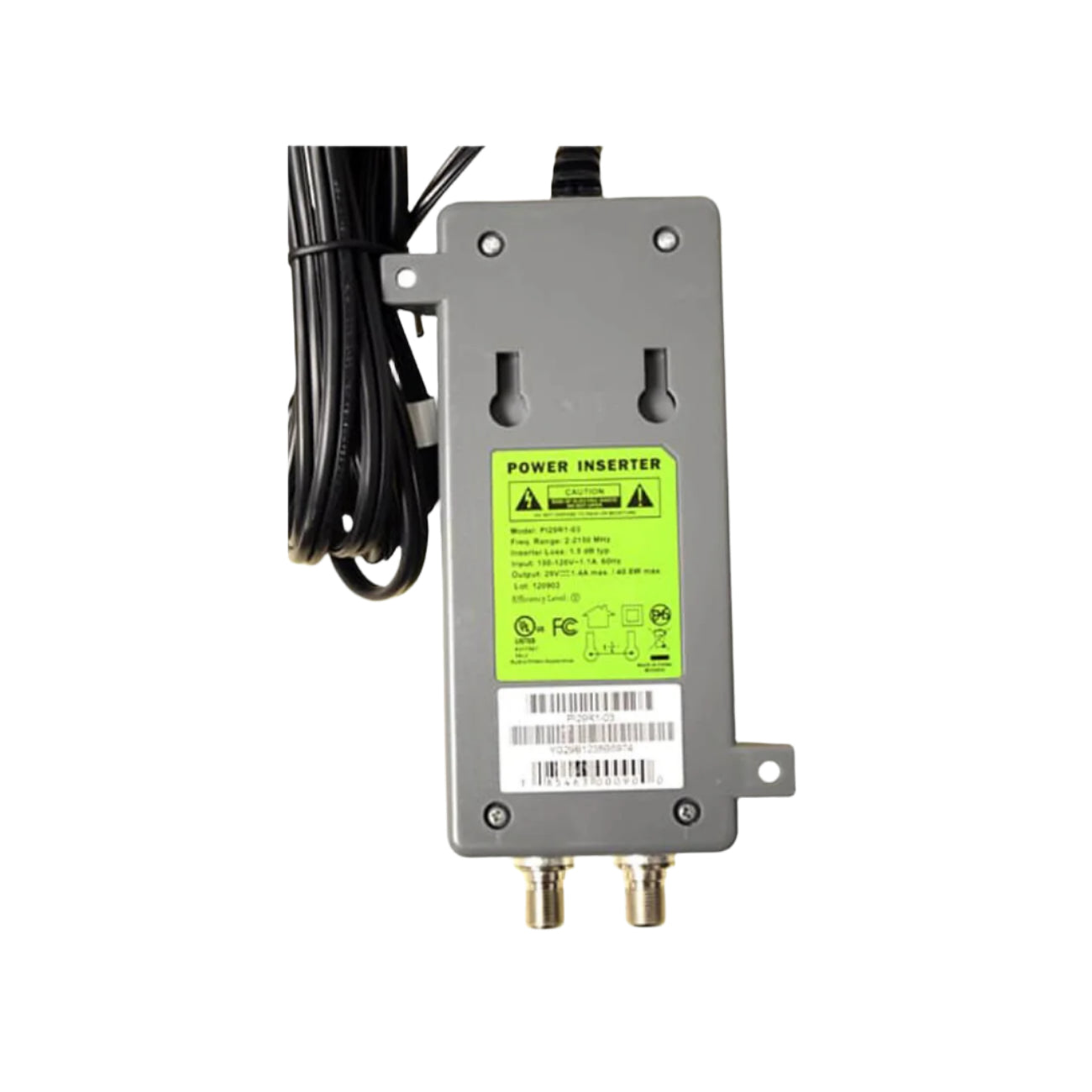

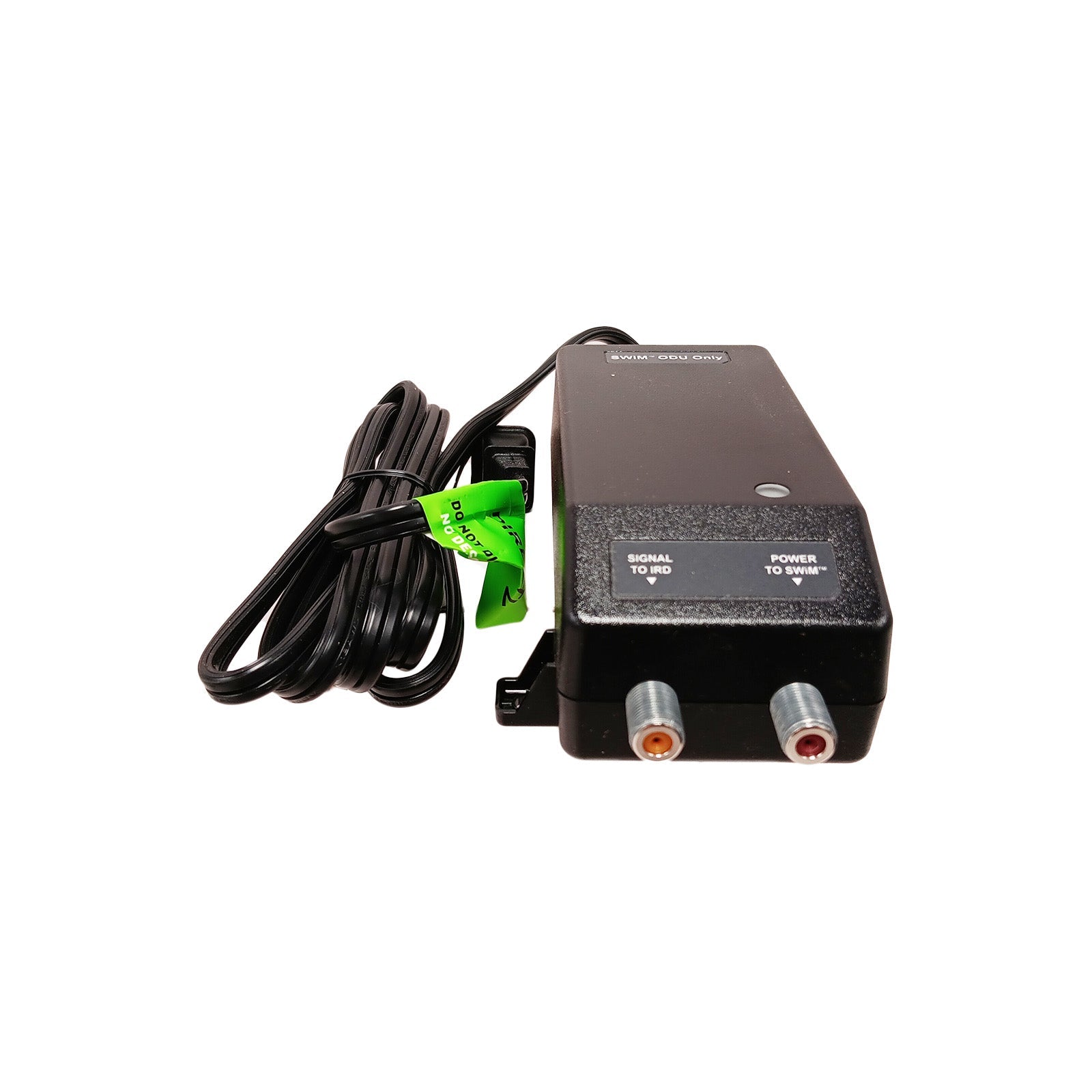

Directv Pi-21 SWM Power Inserter

The Directv PI-21 21 Volt power inserter is ONLY designed for use with SWM LNBs. It provides 21 volts of power for the built-in multiswitch inside the dish assembly. It is not designed to power an external multiswitch.

The  Directv 21 Volt Power Inserter (PI-21) is specifically designed for use with the Single Wire SlimLine Dish Antenna. This is necessary for installing the Slimline SL5-S and the SL3-S dish.

DIRECTV specs suggest connecting the power inserter one of three ways. On SWM-enabled dishes, a single line is run to a splitter. A cable is run from the red connection on the splitter into the “Power to SWM” connection on the power inserter. Then, a cable is run from the “Signal to IRD”

• • Frequency Range: 2-2150Mhz
• • Can be used for the SWM-8
• • UL Listed
• • Output: 21v/ 1.2A max/ 25.2W max.
• • Input 100~120Vac/ 60Hz/ 0.6A max/ 30W max
• • Insertion loss 1.5db
