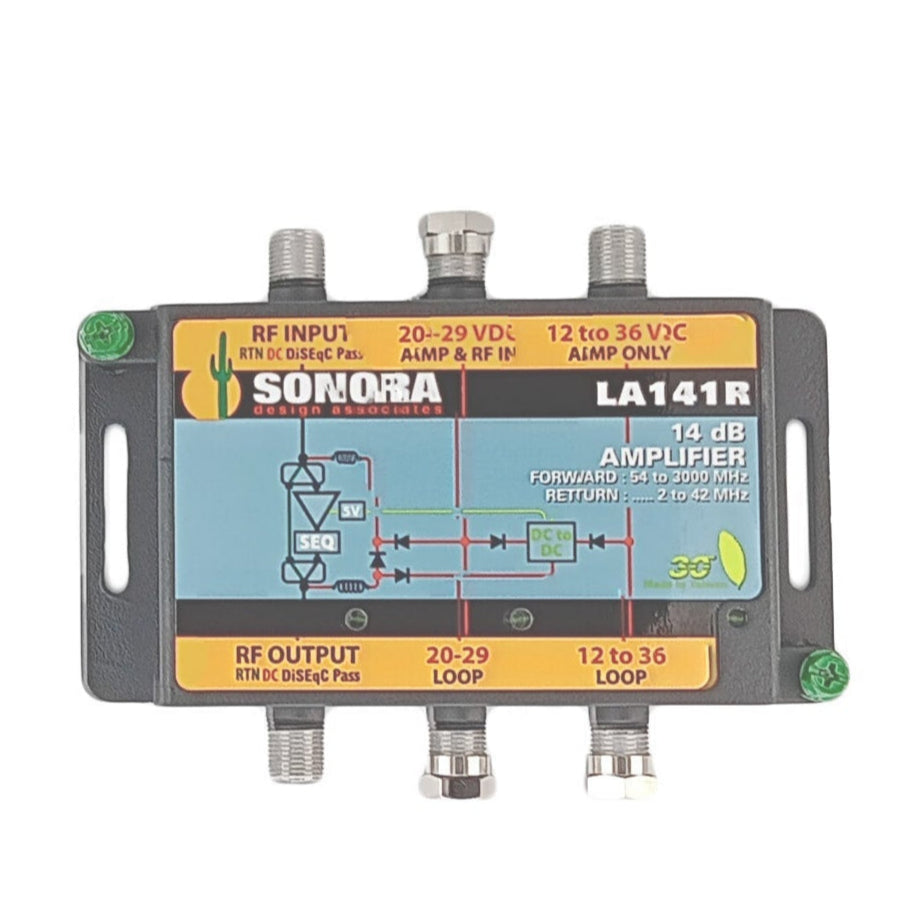

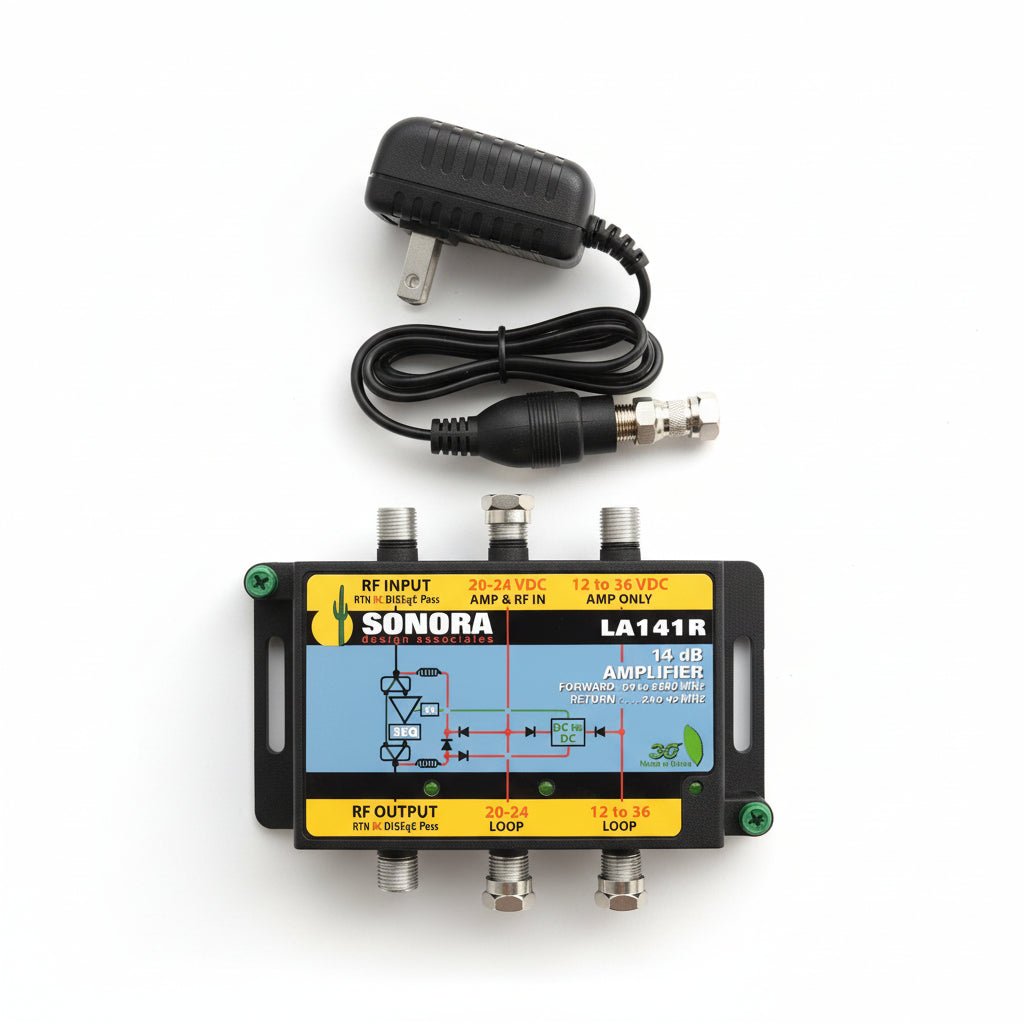

Sonora LA141R-T SWM 14dB Gain Line Amp with 12V Power Supply
$99.99
Product Description
If the output of a single wire multi-switch is split to multiple rooms or apartments, the receiver signal levels are low after 200 feet of RG-6 cable. Model LA141R-T boosts basic cable and DBS signal level off-setting the loss of an 8-way splitter while passing data modem and receiver control signals from the receiver to the switch.
Sonora LA141R-T SWM 14dB Gain Line Amp with 12V Power Supply
SWM (MFH2) Line Amp 14dB gain, 54 to 3500 MHz, with sub band return 2 to 40 MHz, with external power port.
The LA141R is perfect for use on the SWM-8. Use if the output of a Single Wire Multi-switch is split to multiple rooms or apartments and the receiver signal levels are low after over 200 feet of RG-6 cable.
The LA141R boosts basic cable and DBS signal level off-setting the loss of an 8-way splitter while passing data modem and receiver control signals from the receiver to the switch.
This product is a universal coaxial amplifier. If you were to carry a single amplifier this would be the one. The amp works with Digital, CATV, consumer DBS, commercial MFH1 & MFH2 stacked DBS, and satellite radio.
- SWM8 Output line amp
- 14 dB gain
- 54 to 3500 MHz
- Sub-band return 2 to 40 MHz
- Includes 12v 200mA transformer
