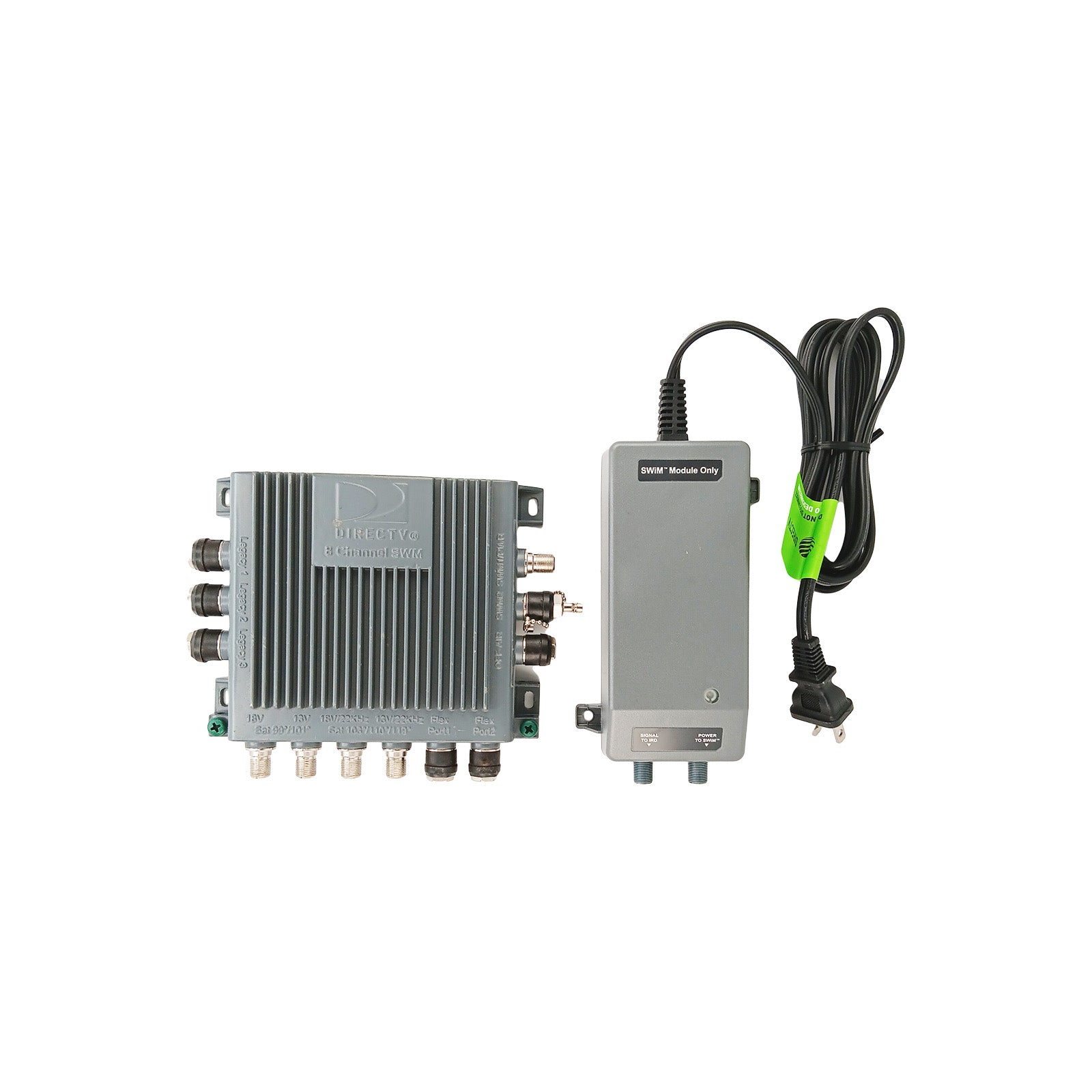

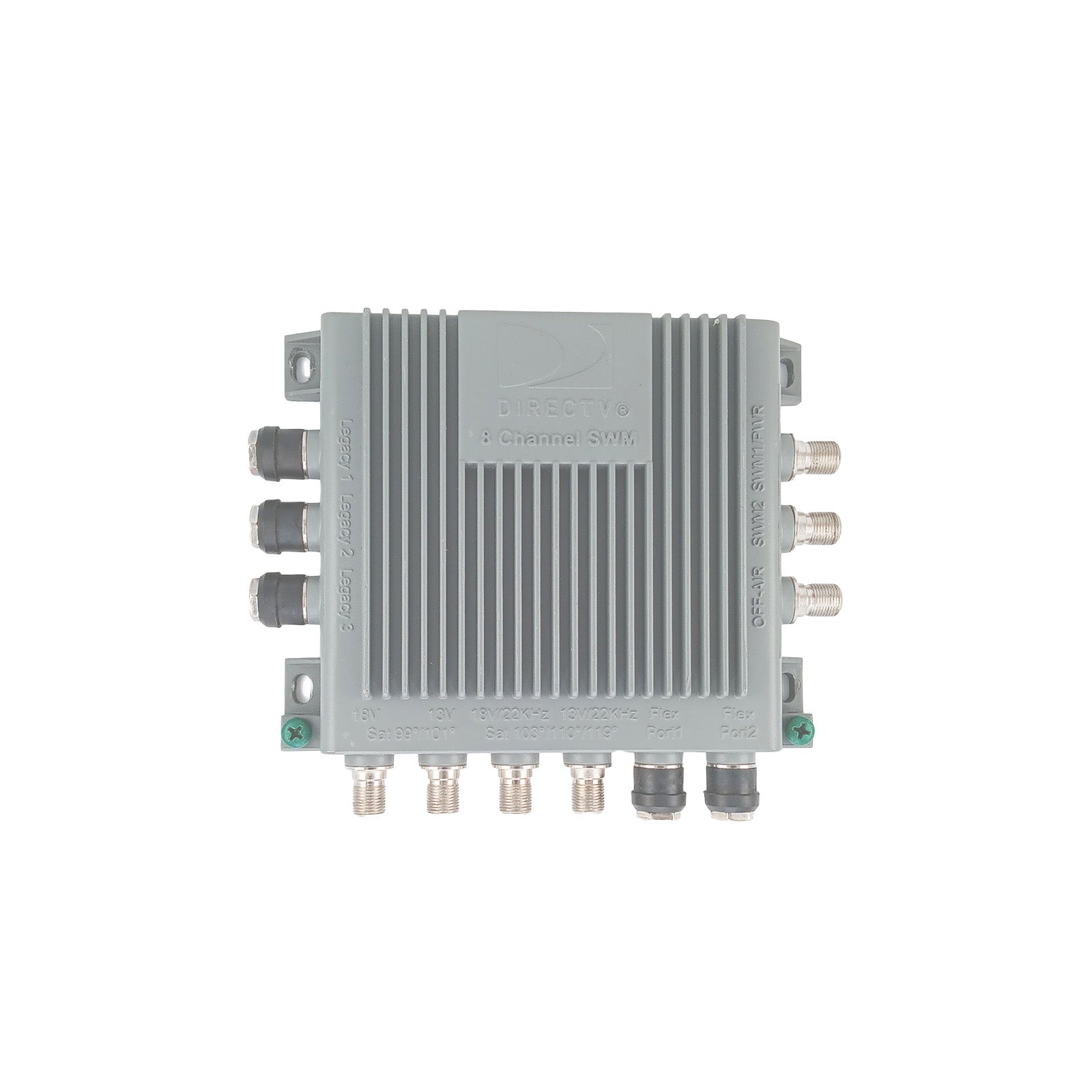

Directv SWM 8 Single-Wire Multiswitch

Provides eight (8) independent channels for supporting up to 8 DIRECTV satellite tuners
Provides two outputs to serve two customer dwellings (typical)
Contains a built-in diplexer for combining off-air signals with DIRECTV satellite signals onto a single home-run wire to the dwelling

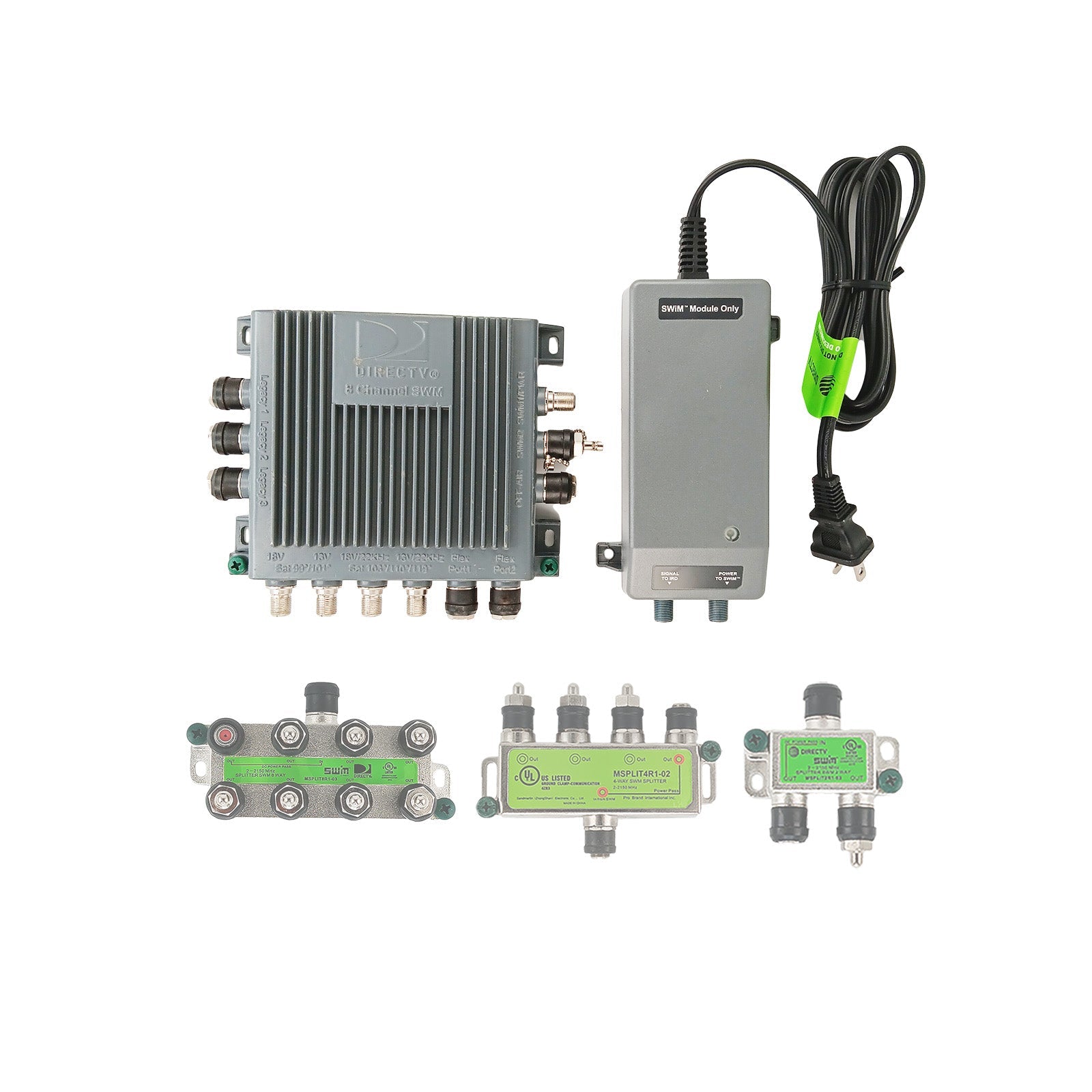

A compatible splitter(Not Included) is needed for multiple receiver installations
Provides AGC for the satellite input signal.
Die-cast housing is suitable for both indoor and outdoor use.
Supports six (6) LNB inputs, each triple-band stacked four ports (Ports 1 - 4) cover existing 99/101, 103/110/119 satellites, plus two Flex Ports (95 sat and 72.5 sat)
Uses only 1 RG6 between SWM-8 and STS Splitter (not included)
Maximum Distance from SWM8 to Splitter: 200
29 volt Power Supply Included
