Regular price $219.99 $199.99

Save $20.00
/
Tax included.

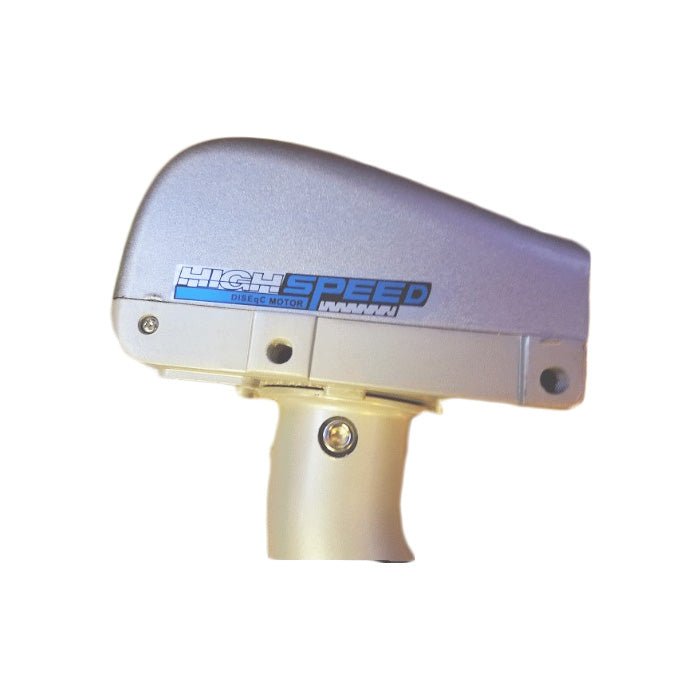

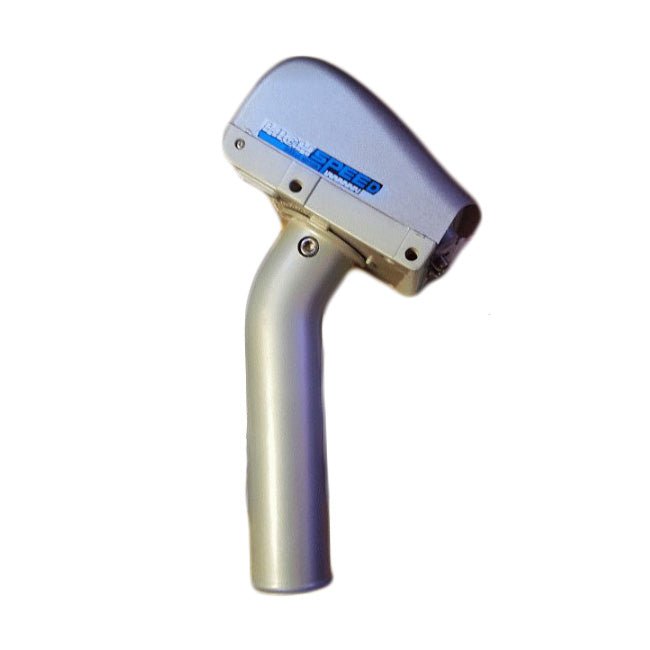

Opticum DM2800 Diseqc H-H satellite dish motor and mount rotates 1.0 and 1.2 meter satellite dishes.

Only 3 left - Selling fast
Estimated delivery between - .

Opticum DM2800 Diseqc H-H Satellite Dish Motor and Mount

$199.99

Opticum DM2800 Diseqc H-H Satellite Dish Motor and Mount

Product Description

This H-H Satellite Dish Motor was tested at several different locations in the US on 1 Meter and 1.2 Meter steel satellite dishes with excellent results.

The Shaft size on the Motor is 2" / 50MM OD.

If your using the GEOSATpro 1.2 Meter Satellite dish, you will need to sleeve the shaft to a larger size to fit the AZ/EL Mount tight.

We are offering an Optional PVC Sleeve for $6.99 to increase the Shaft Diameter to 60MM / 2.375 Inches so it fits the GEOSATpro 1.2 Meter Satellite Dish which accepts a shaft size of Minimum: 55mm (2.16"),  Maximum 76 mm (3"). This sleeve is 4 1/2" long - 2" ID and has a cut long ways, to make it able to flex, to be able to get it over the ridge end on the motor shaft. We place several 1/2" round sticky intertube patches on the inside of the PVC sleeve, so when the sleeve is compressed in the clamp on the satellite dish, it will tighten good and not slip.

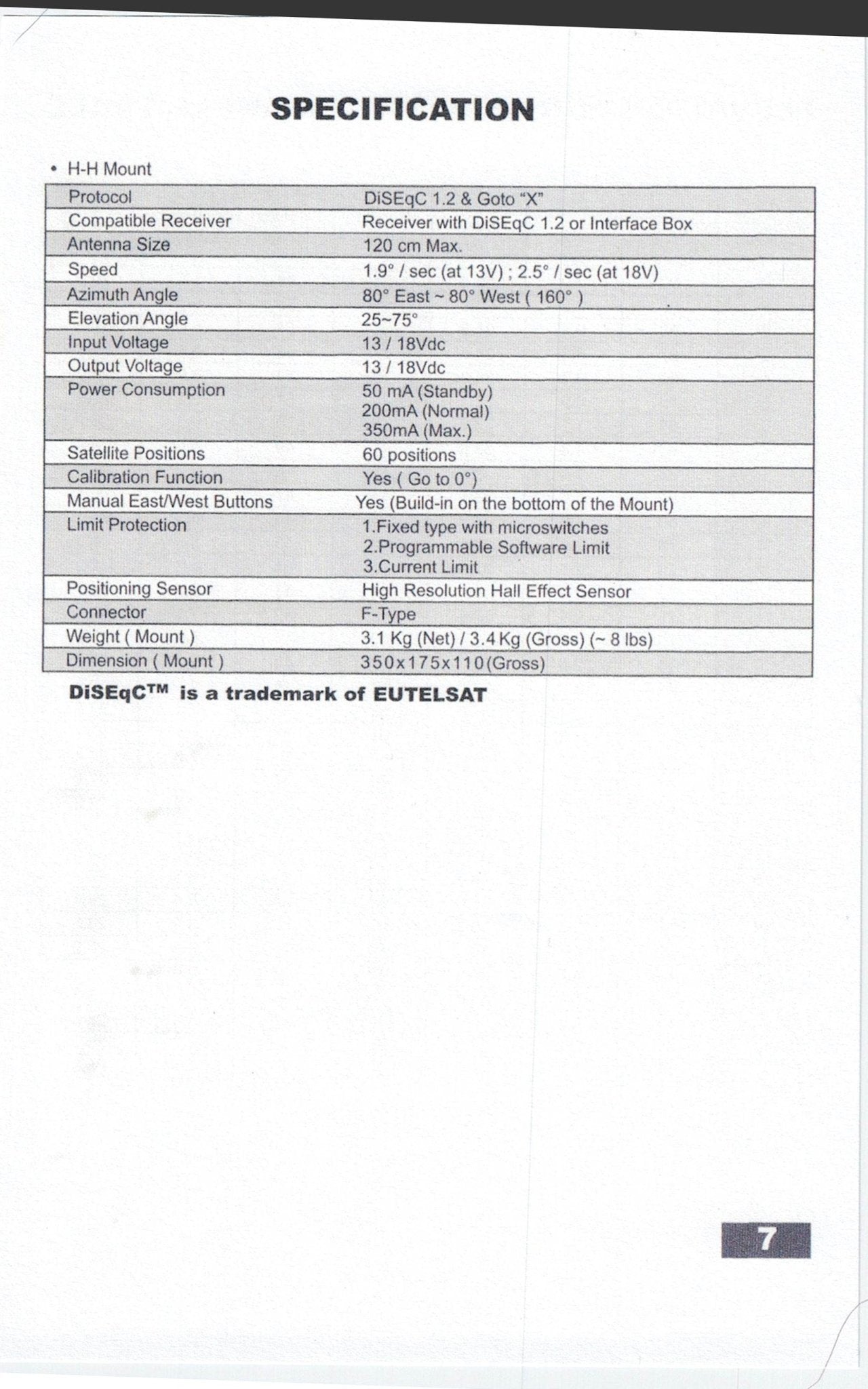

Specifications:

DM2800 Opticum DiSEqC H to H Motor and Mount

Compatiable with All DiSEqC 1.2 Receivers

Drive Satellite Dish up to 1.4 Meters (30lbs Maximum) at High Speed
Quick Installation by only 1 Coax Cable to power both the Motor and the LNBF
DiSEqC 1.3/"Go To X (USALS) function" 60 positions

Metal Gear
Motor Shaft - 2" / 50MM OD
Adjustable Hardware Limits

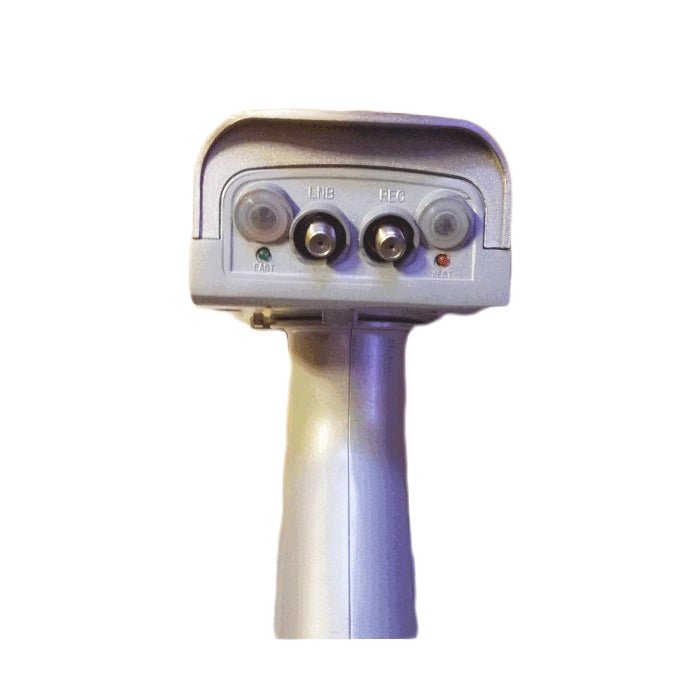

Easy Installation with LED Indicator

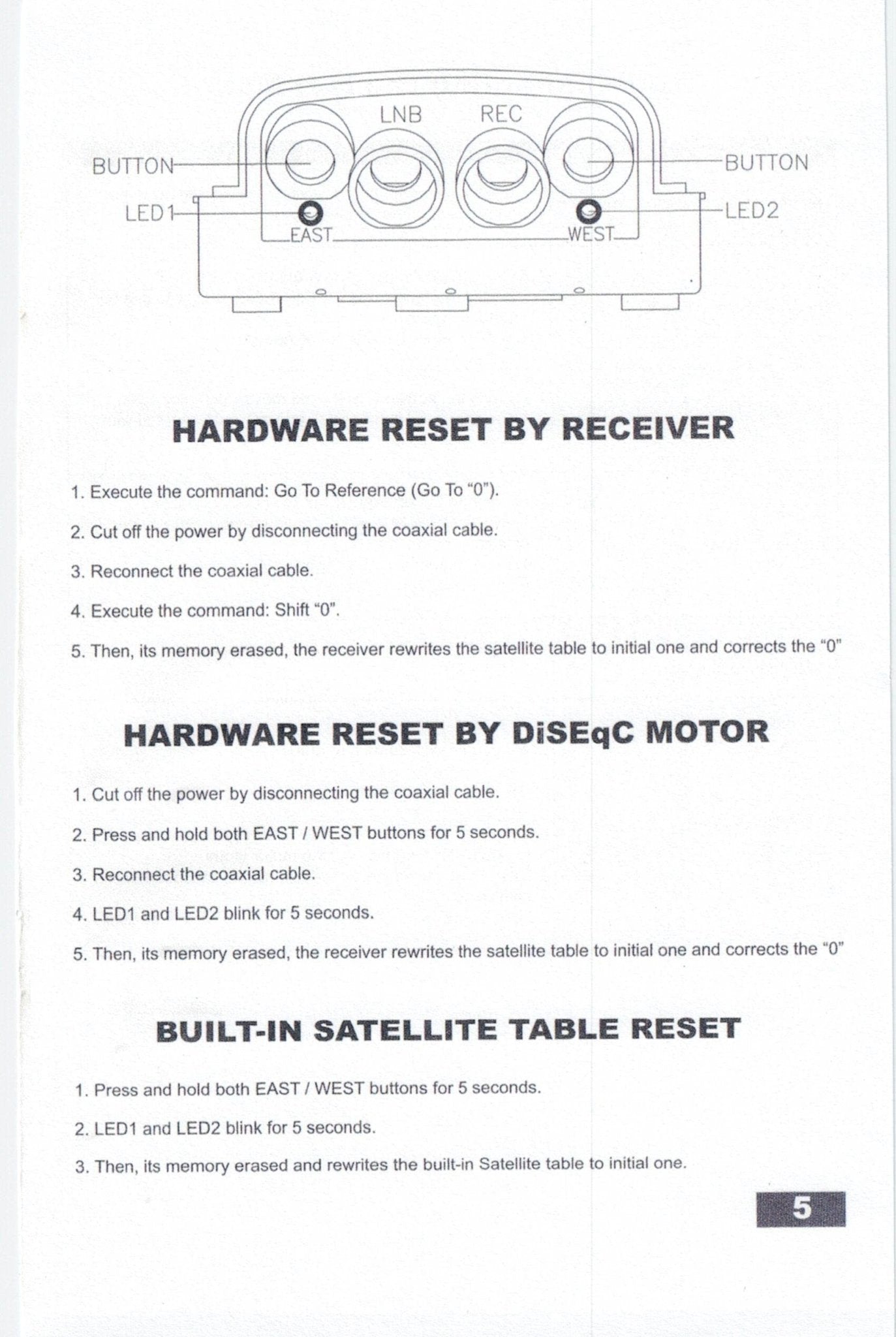

Manual EAST / WEST button

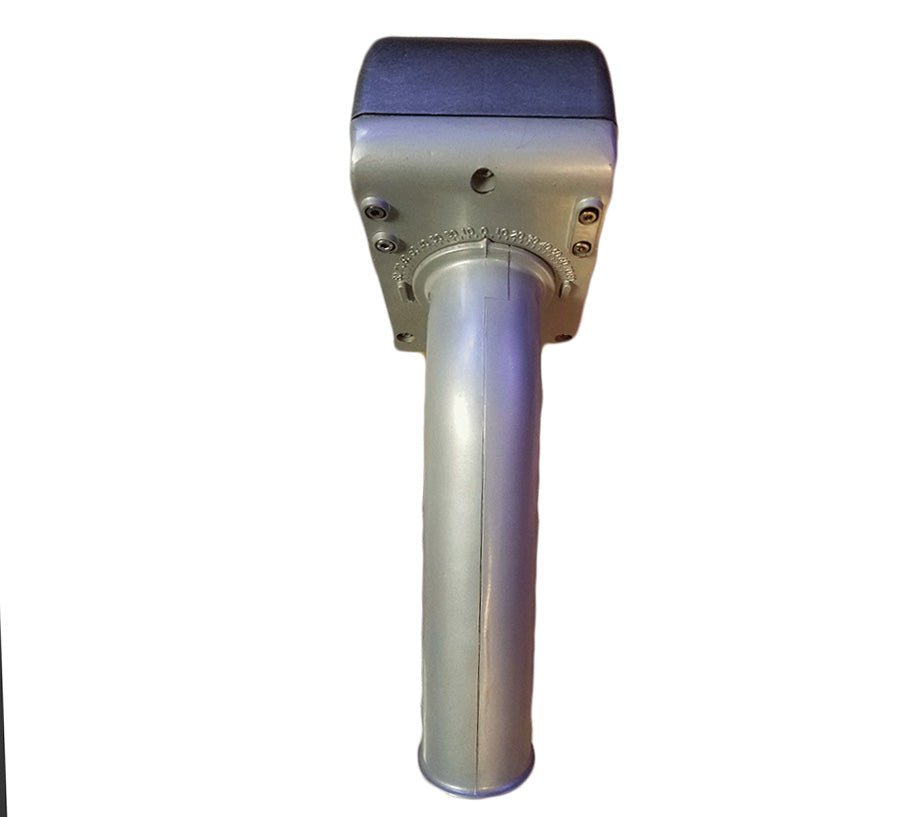

Adjustable Dish Tube / Shaft
For Dish up to 1.4 Meters

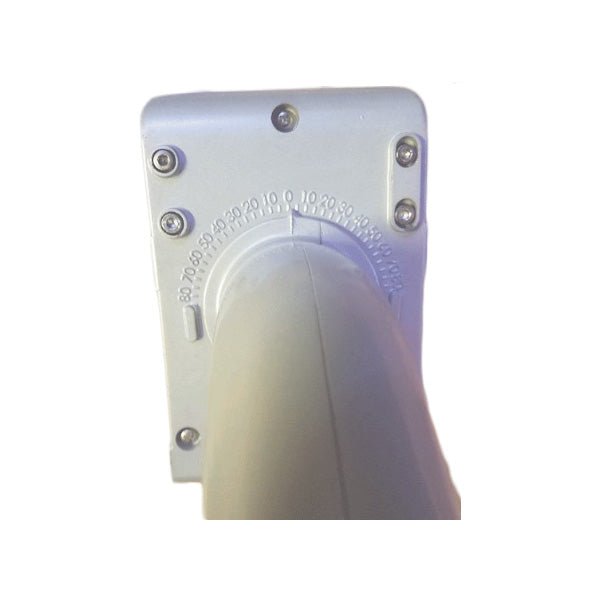

Motor rotation angle: 150° (80° East ~ 80°West) max.
Rotation speed: 1.9°/s(13V) 2.5°/c(18V)
Power consumption: 50 mA (Standby) / 200 mA (Normal operation) / 350 mA (Maximum)
Increased Precision
Increased ReliabilityHigh Efficiency
Compact Structure
Ultra Low Noise
