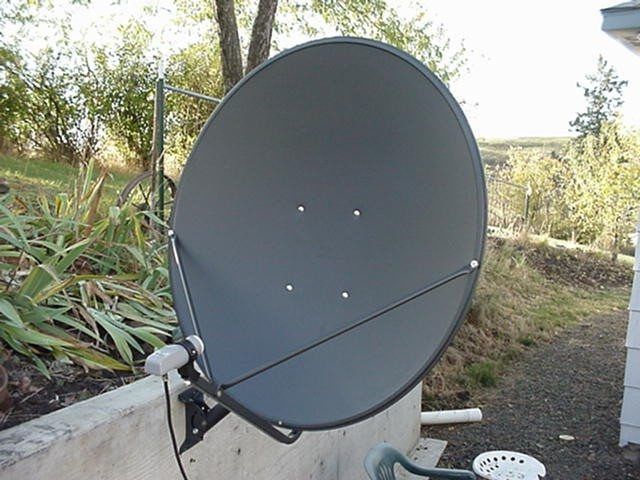

GeoSatpro 90CM Offset Satellite Dish
$119.99
GeoSatpro 90CM Offset Satellite Dish
Product Description
Technical Specifications
| Mechanical | |
| Effective Aperture | 90 cm / 36" |
| Diameter | 93.5cm x 85 cm |
| Assembled Weight | 12 lbs. |
| Reflector Thickness | .7mm |
| F/D | .5 |
| Offset Angle | 24.62 degrees |
| Surface Accuracy | .+/- 0.01 deg." |
| Elevation Range | 0 - 90 deg. |
| Finish | Textured Poly Powder Coat Color: Charcoal |
| Mount Type | Universal - Roof or Wall with adjustable position tripod legs, 27" "J" post double ended for height or reach setting. 360 degree level adjustment. |
| Feed Support | Universal 40mm / 23mm Clamp |
| Electrical | |
| Frequency Range | 10.95 - 12.75 GHz |
| Gain at 12.5 Ghz | 39.6 dBi |
| Aperture Efficiency | 75 % |
| Beam Width | -3 dB @ 1.8 degrees |
Enviromental |
|
| Wind Loading | Operational 65MPH Survival 125MPH |
| Atmosphere | 10 Years |
