DISH Network DPP-44 Switch Dish Pro Plus 44 Cascadable

4 Orbital Locations, 4 Tuner Outputs

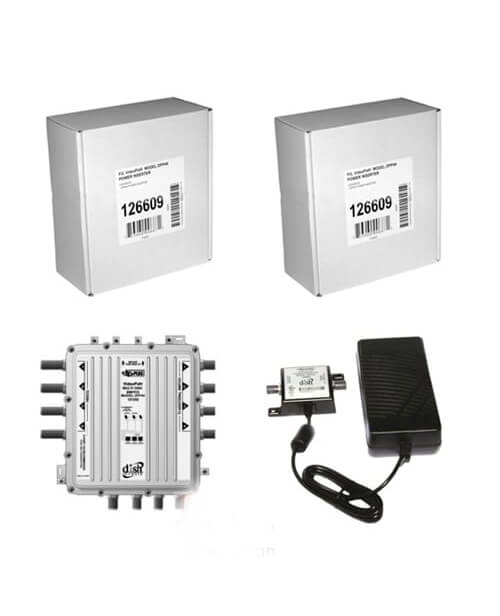

The DISH Pro Plus 44 Switch features DISH Pro Plus Technology, LNBF inputs supporting four orbital locations, four receiver outputs, expansion ports to connect additional switches, and a power inserter.

• DISH Pro Plus-compatible dual-tuner receivers (942, 625, 921,721, 722, 722K, 522, 322 and Hoppers) can be connected with a single-cable, when used with a DISH Pro Plus Separator.

• Provides four LNBF inputs for reception from up to four locations.

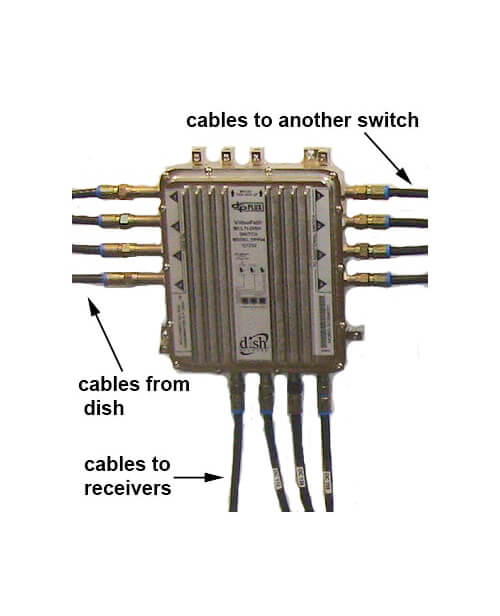

• Three "trunk" connections, to "trunk" to another DP44 Switch.

• Requires power insertion, power supply included

Special Considerations

• Can only be used with DishPro or DPPlus LNBFs (Twin LNBF for two orbital locations (110° and 119°),

Legacy Receivers

• A "legacy" receiver (non-DishPro receivers, released before Dish301) can be connected to a DishPro DPP44 Switch, without using a DishPro Adapter.  The DPP44 switch has built-in DISH Pro Adaptor which will allow this switch to be used with any DISH Network receiver including older legacy equipment
