Octagon SX98 V2 4K UHD Sat Receiver - WiFi 5, Linux, PVR

Octagon SX98 V2 4K WL UHD Linux 1x DVB-S2 Sat IP Receiver Experience premium satellite television with the Octagon SX98 V2 4K WL, a powerful UHD receiver designed for discerning viewers. This advanced receiver delivers stunning 4K resolution (3840 x 2160p) powered by a 1600 MHz ARM Cortex-A55 quad-core processor and 1GB DDR3 RAM, ensuring smooth performance for all your entertainment needs. The SX98 V2 features a flexible Linux-based operating system (Define OS) that supports custom images, plugins, add-ons, and skins, allowing you to personalize your viewing experience. Dual-band WiFi 5 (1200 Mbps) and Fast Ethernet connectivity keep you connected, while the single DVB-S2 tuner with DiSEqC 1/1.1/1.2 and USALS support provides reliable satellite reception. Record your favorite programs directly to USB storage with PVR functionality, and enjoy extended EPG, internet radio, DLNA media streaming, and multiroom capabilities. The receiver supports multiple video codecs (HEVC/H.265, H.264, MPEG-2, MPEG-4, VP9) and audio formats including Dolby Digital Plus, ensuring compatibility with modern broadcasts. Connections include HDMI 2a, 2x USB 2.0, LAN, optical S/PDIF, AV output, and a CA card reader for encrypted channels. With its compact design (148 x 103 x 30 mm), low power consumption (20W operating), and included IR remote control, the SX98 V2 4K WL is the ideal choice for satellite enthusiasts seeking flexibility and performance.(Dolby Digital+, Dual WiFi, LAN, CA)

The Octagon SX98 V2 4K WL sets new standards in satellite receivers, offering an unparalleled television experience. With its crystal-clear 4K UHD resolution, a high-performance 1500 DMIPS ARM Cortec-A55 quad-core processor, and a customizable Linux (Define OS) operating system, this receiver is perfectly equipped to meet your most demanding entertainment needs.

Features

: - 4K UHD (3840 x 2160p) resolution

- Linux operating system

- 1GB DDR3 RAM & 8GB Flash

- Dual-band WiFi 5

- CA card reader.

Flexibility & Customizability:

The strength of the SX98 V2 4K WL lies in its software flexibility. Thanks to support for images, plugins, add-ons, and skins, you can customize the receiver to your personal preferences and needs. Whether you want to add extra features, change the user interface, or install specific codecs – the possibilities are virtually limitless.

PVR via

USB (Personal Video Recorder via USB) is a feature that allows you to record television programs on an external USB storage device, such as a hard drive or USB stick.

Technical Specifications

- Product Type: Sat IP Receiver

- Image: UHD 4K

- Image Resolution: 3840 x 2160p

- Video Codec: HEVC/H.264, HEVC/H.265, MPEG-2, MPEG-4, VP9

- Audio Codec: AAC, AAC Plus, MP3, Dolby Digital, Dolby Digital Plus, DTS, TrueHD

- Operating System: Linux (Define OS)

- SoC: 6323V100

- CPU (Processor): 1600 MHz ARM Cortex-A55 Quad-Core

- GPU (Graphics): ARM Mali-450

- RAM: 1GB DDR3

- Flash Memory: 8GB

- DMIPS: 1500

- DiSEqC 1/1.1/1.2, USALS

- PVR: Yes via USB

- Tuner: 1x DVB-S2

- Tuner Type: Satellite Tuner

- HD+ Support: No

- HDMI CEC support

- Remote control: IR remote control

- Internet radio

- Customizable OSD user interface (skin support)

- Media libraries of public broadcasters

- Web interface (touch & FTP)

- Extended EPG (Electronic Program Guide)

- DLNA player & media player with recording & time-shift function

- Unlimited creation of favorite lists

- Multiroom client & Sat to IP client support

Connections

: 2x USB 2,

1x HDMI 2a,

1x LNB input

, 1x AV connection

, 1x DC connection,

1x IR connection

, 1x S/PDIF (optical)

, 1x CA card reader

, 1x LAN (10/100 Mbit/s),

1x Recovery (reset) button – Service & Maintenance

Connectivity

- LAN: 10/100 Mbps (Fast Ethernet)

- WLAN: 2.4/5 GHz Dual-Band WiFi

- WLAN (Standards): WiFi 5

- WLAN (Speed): 1200 Mbps - Power

Supply

: DC 12V 1.5A

- Power Consumption (Standby): 0.5W

- Power Consumption (Operating): Max 20W

- Storage Temperature: 0 – 40°C

- Humidity: <95%

- Dimensions: 148 x 103 x 30 mm

- Product Weight: 250 g

- Package Weight: 660 g

- Color: Black

- Country of Origin: China

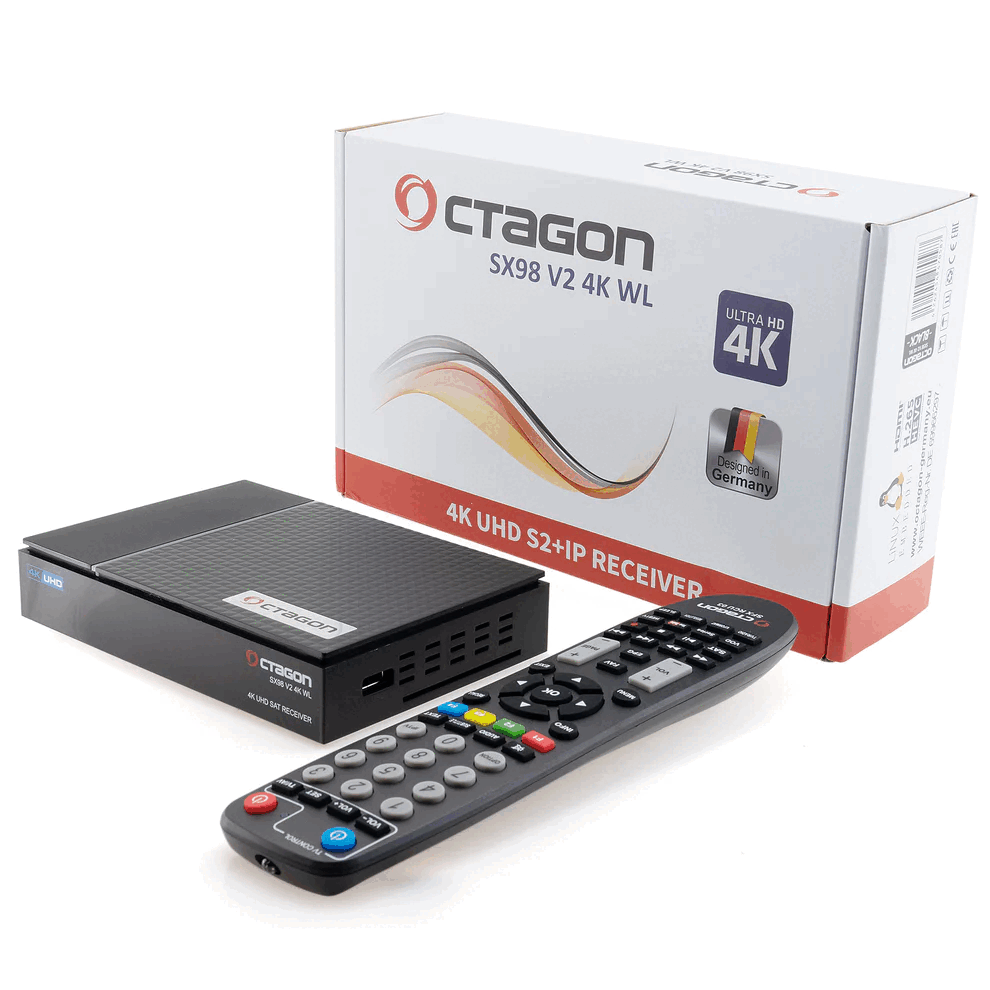

Package Contents

: 1x Octagon SX98 V2 4K WL UHD Linux 1x DVB-S2 Sat IP Receiver

1x Octagon SFX RCU 03 IR Remote Control, Black

1x External Infrared (IR) Receiver

1x HDMI Cable

1x Power Supply

2x AAA Batteries

1x User Manual
