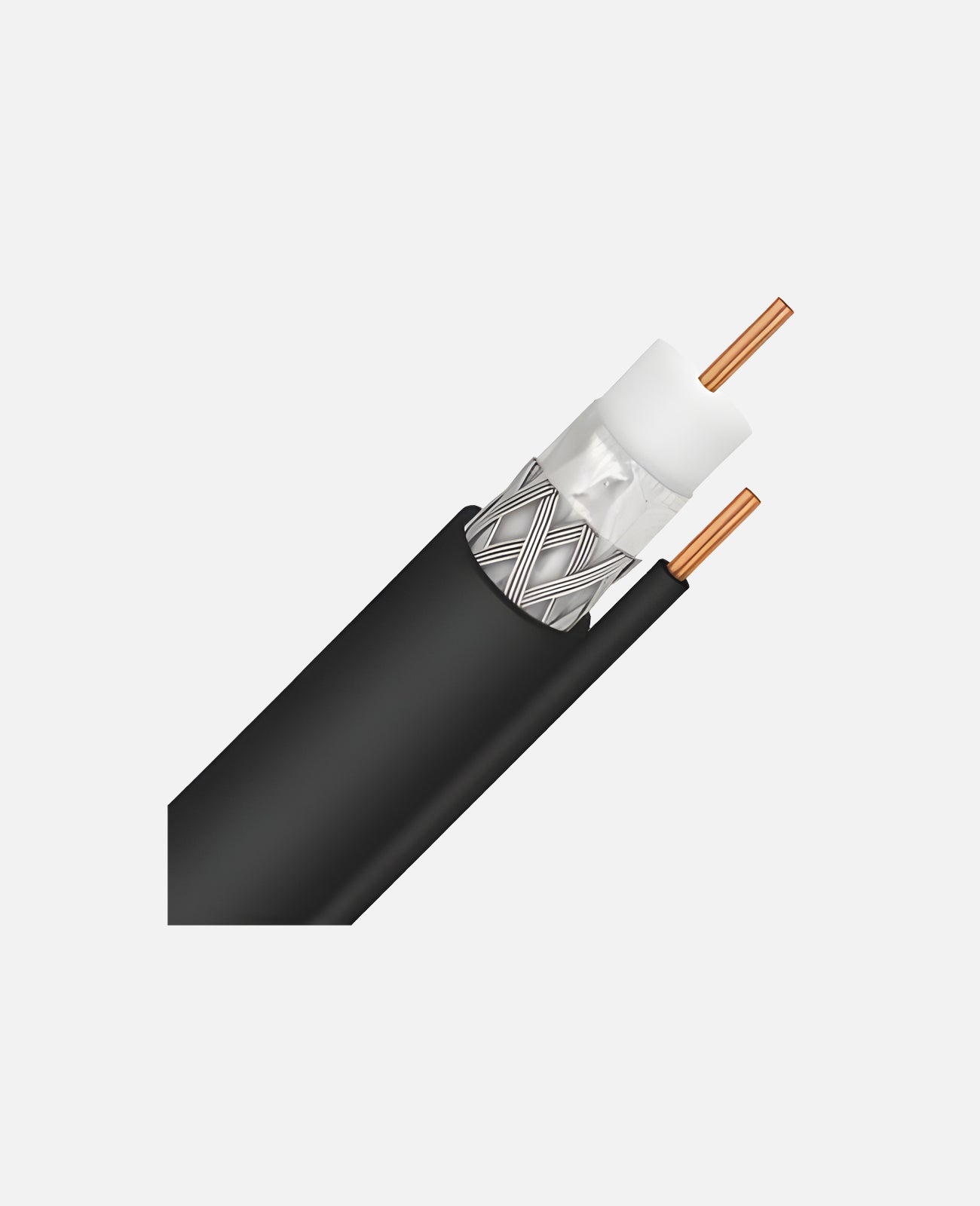

Perfect Vision Single RG-6 Solid Copper Burial Coax Cable 1000' Spool Black Directv, ATT Approved (PVCX7B)

This black, burial, single, RG-6 coax cable is UL Listed, has a solid copper conductor wire, DIRECTV approved, SBCA compliant, includes a grounding wire and comes in an easy to use 1000’ pull box with internal rolling reel. It is swept tested to 3 GHz, 60% aluminum braiding, 100% shielded, PVC jacket and foamed polyethylene.

• Impedance:                            75 Ohms ± 3 Ohms
• Capacitance:                          16.2 PF/ft ± 1.0 PF/ft
• Velocity of Propagation:        83%
• Nominal Delay:                      1.22 NS/ft
• Conductor DC Resistance:  22 Ohms / Km
• Shield DC Resistance:         43 Ohms / Km
• Swept Tested:                         5 MHZ~3000 Mhz
• UL:                                             CATV / CM
• Footage markers:                   Every 2 ft

Each
12.50 in. wide x 12.50 in. high x 15.25 in. deep
Volume: 2382.81 cubic in.
Weight: 40.6 lbs.
Quantity: 1 ea.

Pallet
37.25 in. wide x 81.00 in. high x 37.25 in. deep
Volume: 112392.56 cubic in.
Weight: 1867 lbs.
Quantity: 45 ea.
